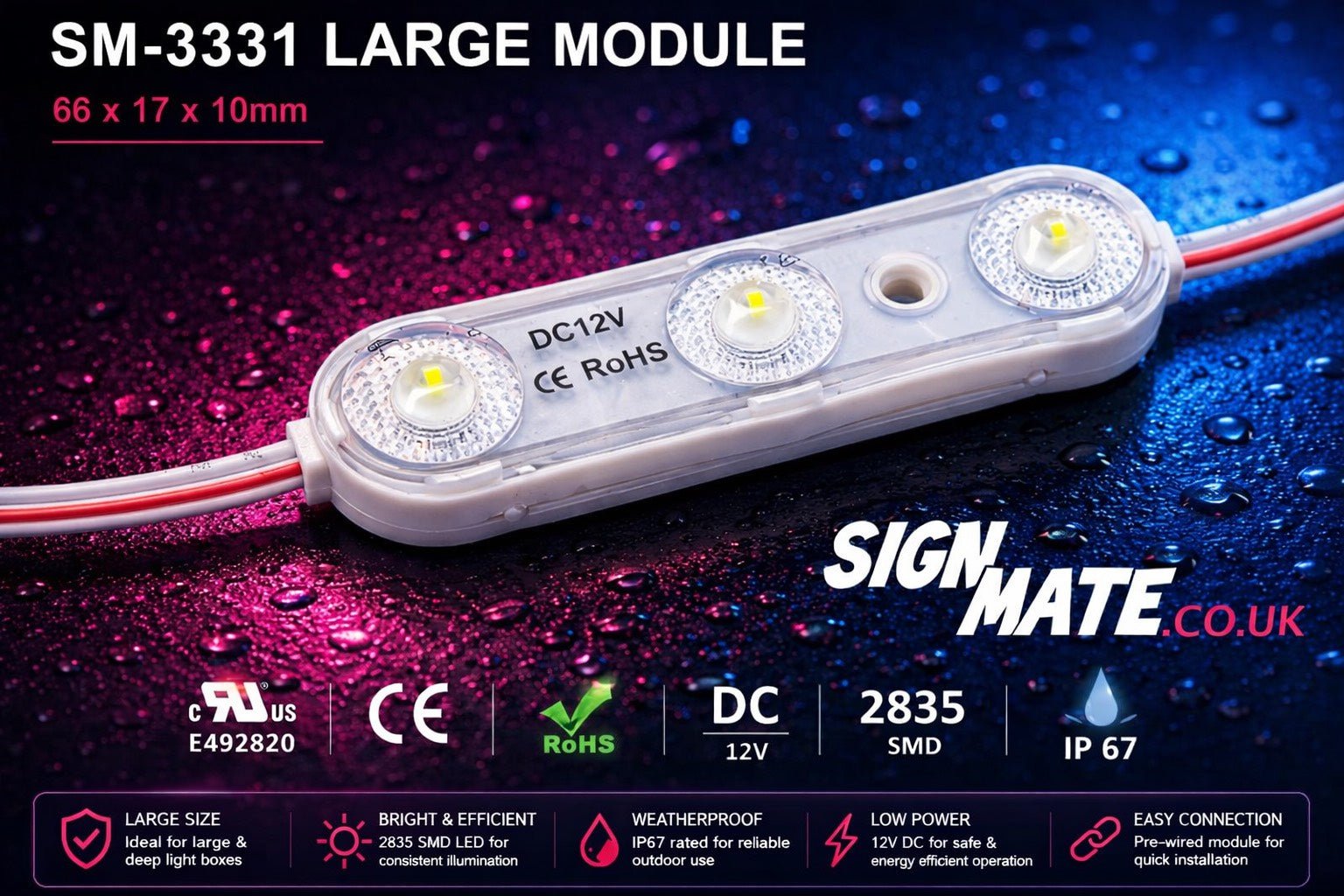

Product Code: SM-3331
Description:

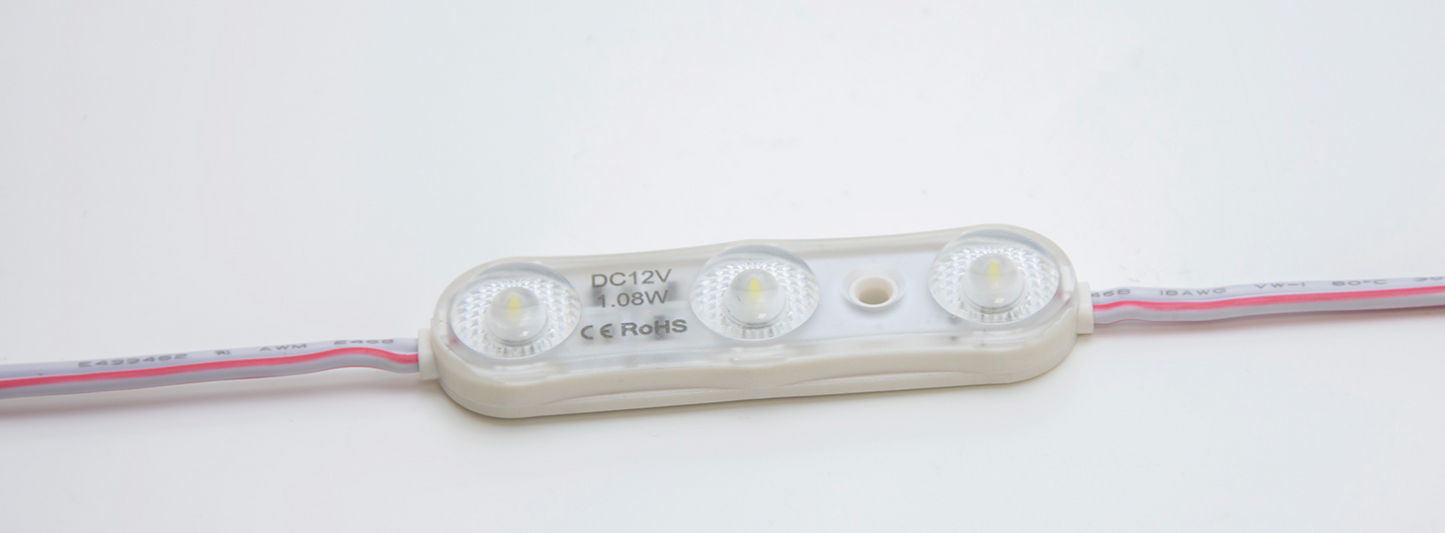

Our Large Module, ultra-efficient LED module built for serious signage. Featuring premium 2835 SMD chips and a super-wide 175° beam angle, it delivers smooth, uniform lighting even in all areas — with powerful performance and easy installation.
Key Features:
High Efficiency: Powered by SMD2835 LEDs, delivering up to 170 lm/W.
Ultra-Wide Beam: Spreads light evenly with a 175° angle, ideal for shallow channel letters and lightboxes.
Consistent Illumination: Built with constant current circuitry for stable brightness.
Tool-Free Install: Integrated 3M™ adhesive backing for fast and secure mounting.
Durable Design: ABS injection molded, waterproof to IP67, and suitable for depths 4–16cm.
Safe & Certified: UL, CE & RoHS approved for quality assurance.
Specifications:
LEDs per Module: 3
Voltage: DC12V
Power: 1.08W
Brightness: 168 lumens
Beam Angle: 175°
Waterproof Rating: IP67
Module Dimensions: 68 x 16.9 x 9.84mm
Max Chain (1-end powered): 20 Modules
Quantity: Sold in packs of 100
